Illuminate your Reef Casa with this easy set up manual

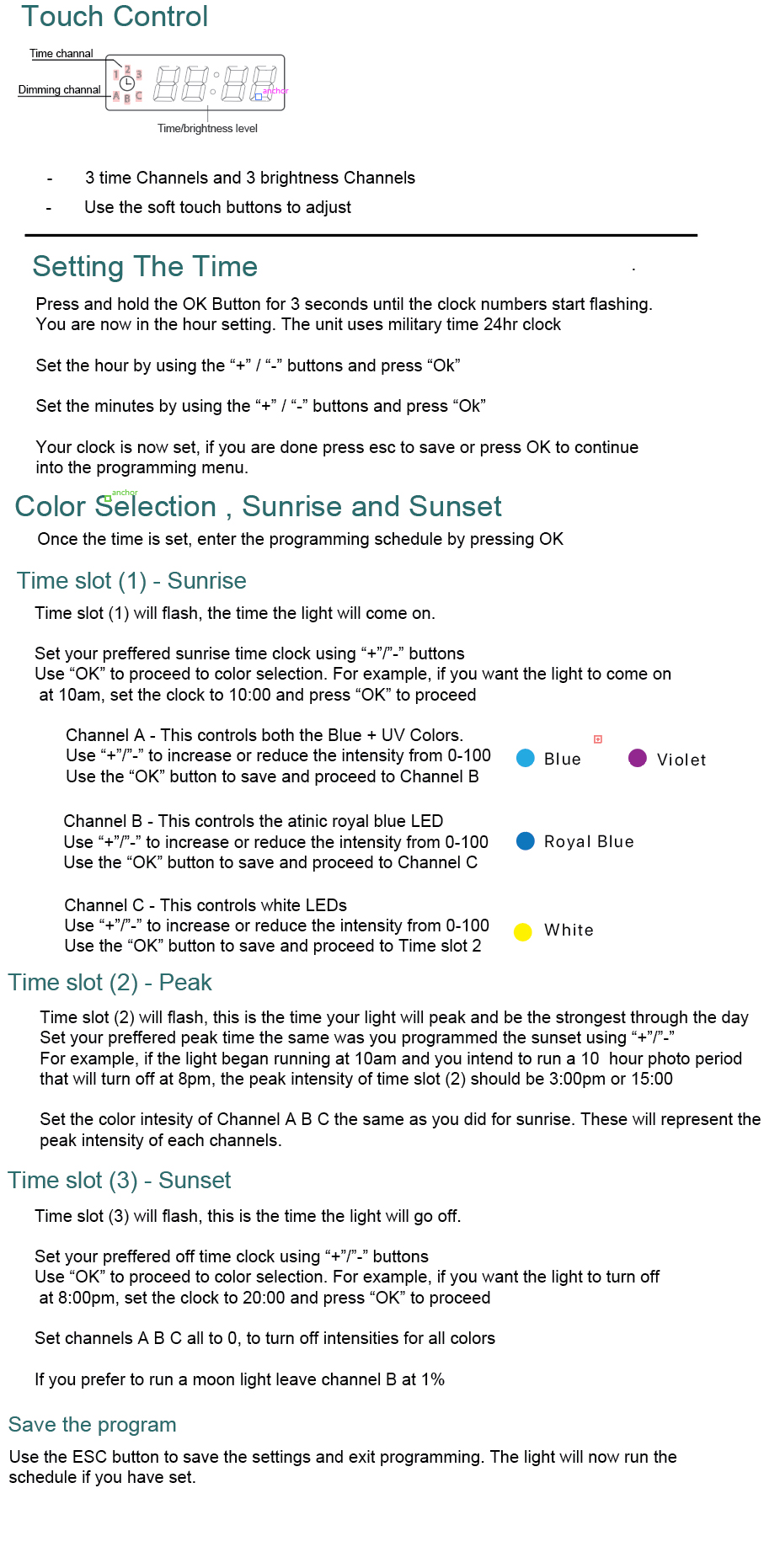

Step 1 – Clock Set Up

This light operates on a 24-hour time period.

  1. Press and hold the “OK” button until the clock screen begins to flash. You are now in the “hour” setting.
  2. Adjust the hour to match your current local time using the “+” or “-“ buttons.
  3. Next, press the “OK” button to proceed to the minutes and set the minutes using the “+” or “-“ buttons.
  4. Press “ESC” button to save and exit the time setting menu.

The top of the Halo light are designed with soft tap button, simply lightly touch them to cycle through.



Step 2 – Setting your Daily Light Schedule:

Once setting your clock press OK to proceed to schedule

  1. Now that Time Slot (1) is flashing, you can program when you want your lights to come on.
  2. Set the time for your preferred schedule, pressing the “OK” button once to move from hours to minutes.
  3. Press “OK” once more to enter the Color Channel setting.
  4. Set channel (A), (B) and (C) to 0 using the “OK” button the navigate through color Channel.
  5. Press “OK” once more to enter Time Slot (2). Time Slot (2) is your peak time throughout the day; when your lights are at their strongest. We recommend setting this to the middle of your schedule, so you get even ramp up and down times. Press “OK”.
  6. Using the “OK” button to navigate, program your peak intensity and color spectrum:
  7. Channel “A” is Royal Blue
  8. Channel “B” is Cyan
  9. Channel “C” is White
  10. Press “OK” once more to enter Time Slot (3). Time Slot (3) is when you want your lights to turn off. Set your time and press “OK”.
  11. Set channel (A), (B) and (C) to 0 using the “OK” button the navigate through each color Channel.
  12. Press the “ESC” button to save your light schedule and exit out of the programming menu.

Reef Casa Recommended Schedule (10 hour of light)

Time slot 1 – 11am  (sunrise)

Channel A Royal Blue 20      Channel B Cyan 20  Channel C 5

Time Slot 2 – 3pm (peak)

Channel A Royal Blue 100      Channel B Cyan 100       Channel C 20

Time Slot 3- 9pm  (bed time)

Channel A Royal Blue 0   Channel B Cyan 0  Channel C 0

(if you would like moonlight set royal blue to 1 for time slot 3 )

































www.reefcasa .com



Specifications

Name: HALO Nano Reef LED

Input Voltage: AC 100-240V

Output Voltage: DC24V

Max Power: 36W











PARTS DIAGRAM

















NANO REEF LED
